Description

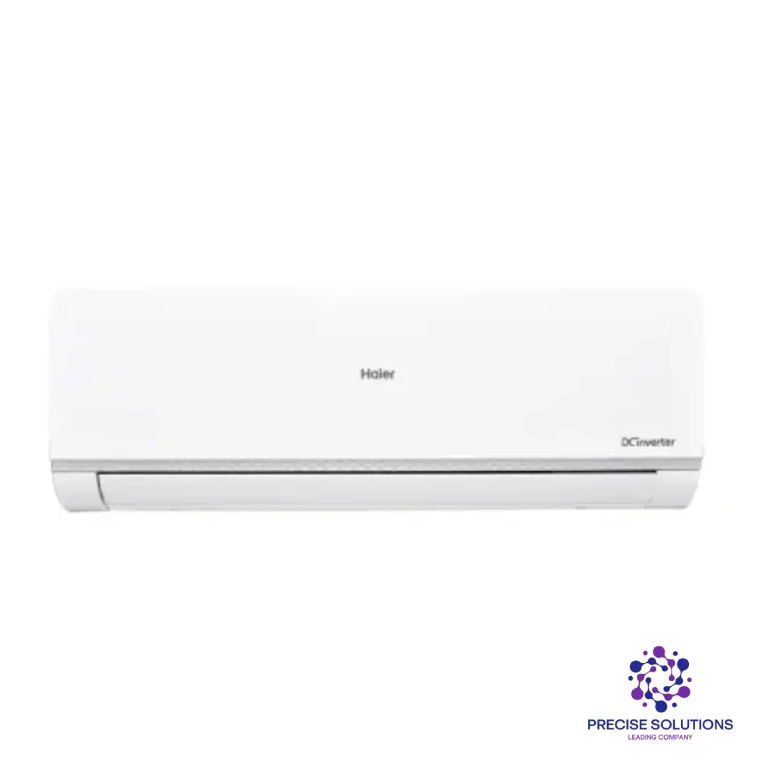

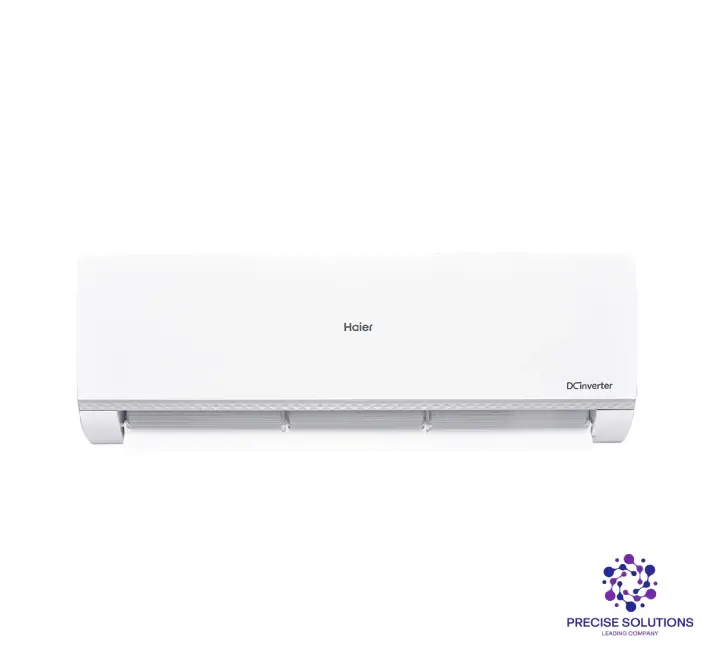

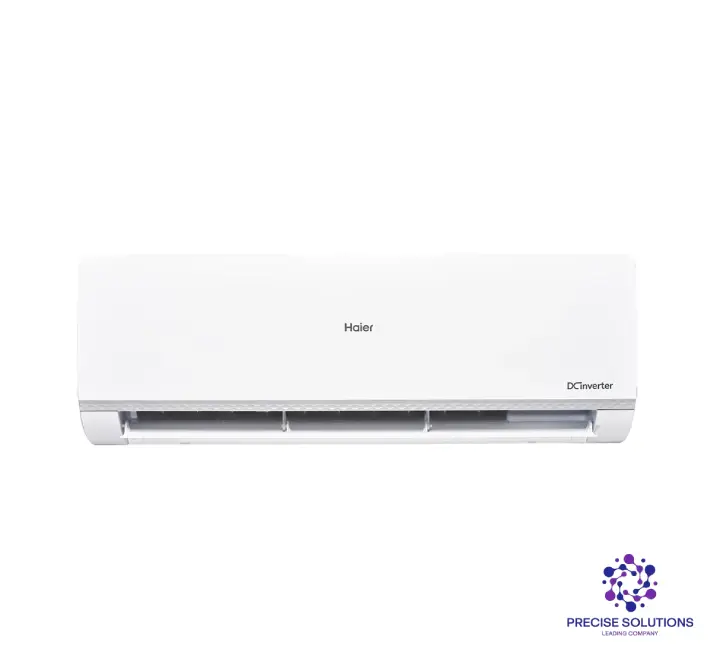

The Haier HSU-12HFCM/013USDC (W) is a premium 1-ton Triple Inverter split air conditioner designed for high performance, energy efficiency, and long-term durability. It is built specifically for hot climates like Pakistan, delivering powerful cooling even in extreme temperatures while keeping electricity consumption low.

Key Features & Detailed Description

1. Model & Category

• Model: HSU-12HFCM/013USDC (W)

• Series: Triple Inverter

• Type: Wall-mounted split AC

• Ton Capacity: 1 Ton

This model uses Haier’s advanced Triple Inverter technology that optimizes compressor speed, PCB performance, and fan motor efficiency for maximum energy savings.

2. Cooling & Heating Performance

• Cooling Capacity: ~13,300 BTU

• Heating Capacity: ~13,100 BTU

This is a heat & cool AC, making it suitable for both summer and winter seasons.

3. Energy Efficiency & Power Saving

• Cooling Power Input: 0.36 – 1.39 kW

• Running Current: 1.6 – 6.5 A

• Energy-Saving Mode @ 1.2A: Saves up to 60% electricity.

The Triple Inverter compressor adjusts according to room temperature, resulting in:

• Faster cooling

• Lower power consumption

• Long-lasting performance

Also includes Hyper PCB, which stabilizes performance during voltage fluctuations.

4. High Temperature Cooling

• Works at 46°C Full BTU
  This means it delivers full cooling performance even in extremely hot temperatures — ideal for Pakistani summers.

5. Durability & Anti-Corrosion Build

• 100% copper evaporator & condenser
  These copper coils improve cooling efficiency and resist corrosion in humid or coastal areas.

6. Low Noise Operation

• Indoor Noise Level: 30 / 36 / 41 dB

• Outdoor Noise Level: 52 dB

The AC operates quietly, making it suitable for bedrooms, offices, and lounges.

7. Refrigerant

• Uses R-32 refrigerant, which is environment-friendly and more energy-efficient than older gases.

8. Air Flow & Circulation

• Air Circulation Capacity: 700 m³/h
  This ensures fast and even cooling in the room.

9. Smart Control & Wi-Fi

• Supports Haier Smart Air App
  You can control the AC from your phone:

• Turn ON/OFF

• Change temperature

• Set timers

• Monitor energy usage

10. Self-Cleaning Technology

The built-in Self Clean function freezes the evaporator and then melts the frost to wash away dust, bacteria, and moisture — keeping air fresh and clean.

11. Voltage Flexibility & UPS Support

• Works efficiently under low or high voltage

• Supports UPS mode (with external device)
  This ensures the AC keeps running smoothly even during load shedding.

12. Dimensions & Weight

• Indoor Unit: 850 × 295 × 210 mm (11.5 kg)

• Outdoor Unit: 700 × 245 × 535 mm (26 kg)

13. Warranty

• 10 Years Compressor Warranty

• 4 Years PCB Warranty

• 1 Year Parts & Service Warranty

Haier provides one of the best warranty packages in Pakistan.
